Vokey Design® SM10 Wedges
Sharpen Your Short Game
Adding Vokey Design SM10 Wedges to your bag opens a world of scoring opportunities. Between the crisp contact, optimal flighting, incredible spin – and those magical Bob Vokey grinds – they give you everything you need to grow your short game skill. From the simple to the sensational, SM10 are made to make great shots happen.
SM10 Technology
Improved Flighting & Feel
Get lower, more attacking flight in a wedge that feels amazingly solid at impact with SM10. A precise shift in the center of gravity gives you even more control and stability for greater confidence over every shot.
Ultimate Shot Versatility
Your swing is unique and requires the right tools. Finding your ideal mix of grinds will provide you with flawless contact and maximum versatility so you can be prepared for everything the course demands.
Maximum Spin
Every SM10 groove is cut to the edge to maximize spin. Each Vokey wedge is 100% inspected for utmost quality and performance, and a localized heat treatment is applied to the impact area to double the durability of the grooves.
Choose Your Finish
SM10 Wedges are available in Tour Chrome, Nickel, Jet Black and Raw finishes so you can pick the look that best fits your eye and your game.
Testing SM10 With
Justin Thomas
Join Justin Thomas and Vokey Wedge Tour Rep Aaron Dill on the course for wedge testing, and watch as JT goes pin-seeking with his Vokey Design SM10 wedges.
Specifications
Pitching (46°-48°)
| Model | Loft | Bounce | Grind | Length | Weight* |
|---|---|---|---|---|---|
| 46.10 | 46° | 10° | F | 35.75" | D3 |
| 48.10 | 48° | 10° | F | 35.75" | D3 |
Gap (50° - 52°)
| Model | Loft | Bounce | Grind | Length | Weight* |
|---|---|---|---|---|---|
| 50.08 | 50° | 8° | F | 35.50" | D3 |
| 50.12 | 50° | 12° | F | 35.50" |
D3 |
| 52.08 | 52° | 8° | F | 35.50" |
D3 |
| 52.12 | 52° | 12° | F | 35.50" |
D3 |
Sand (54° - 56°)
| Model | Loft | Bounce | Grind | Length | Weight* |
|---|---|---|---|---|---|
| 54.08 | 54° | 8° | M | 35.25" | D5 |
| 54.10 | 54° | 10° | S | 35.25" | D5 |
| 54.12 | 54° | 12° | D | 35.25" | D5 |
| 54.14 | 54° | 14° | F | 35.25" | D5 |
| 56.08 | 56° | 8° | M | 35.25" | D5 |
| 56.10 | 56° | 10° | S | 35.25" | D5 |
| 56.12 | 56° | 12° | D | 35.25" | D5 |
| 56.14 | 56° | 14° | F | 35.25" | D5 |
Lob (58° - 62°)
| Model | Loft | Bounce | Grind | Length | Weight* |
|---|---|---|---|---|---|
| 58.04 | 58° | 4° | T | 35.00" | D5 |
| 58.08 | 58° | 8° | M | 35.00" | D5 |
| 58.10 | 58° | 10° | S | 35.00" | D5 |
| 58.12 | 58° | 12° | D | 35.00" | D5 |
| 58.14 | 58° | 14° | K | 35.00" | D5 |
| 60.04 | 60° | 4° | T | 35.00" | D5 |
| 60.08 | 60° | 8° | M | 35.00" | D5 |
| 60.10 | 60° | 10° | S | 35.00" | D5 |
| 60.12 | 60° | 12° | D | 35.00" | D5 |
| 60.14 | 60° | 14° | K | 35.00" | D5 |
| 62.08 | 62° | 8° | M | 35.00" | D5 |
*Target swingweight is based on stock specs and may vary based on customization.
---
Standard lie angle for all models is 64°.
---
Ladies length is -1" from standard lengths listed above.
Steel
True Temper Dynamic Gold
| Flex | Weight | Torque | Launch |
|---|---|---|---|
| R300 | 127g | 2.0°-1.7° | Low |
| S200 | 129g | 1.8°-1.5° | Low |
| S300 | 130g | 1.8°-1.5° | Low |
| S400 | 132g | 1.7°-1.5° | Low |
| X100 | 130g | 1.7°-1.4° | Low |
Steel

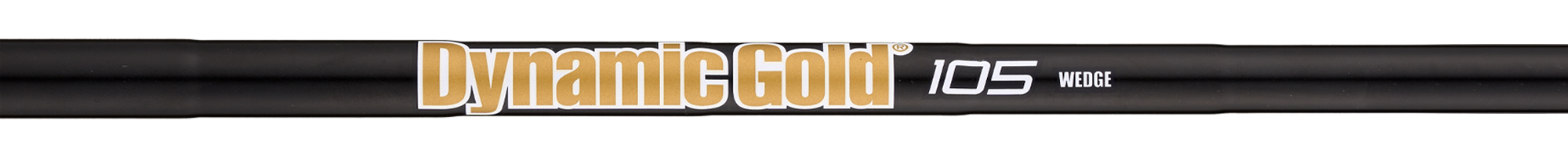

Dynamic Gold 105
Lightweight
| Flex | Weight | Torque | Launch |
|---|---|---|---|
| R300 |
101g |
2.2°-1.9° | Low/Mid |
| S300 |
103g |
2.2°-1.8° | Low/Mid |
| Wedge | 101g |
1.9° | Low/Mid |
Graphite
Tensei AM2 Red (Regular)
Lightweight
| Flex | Weight | Torque | Launch |
|---|---|---|---|
| L | 56g | 3.3° | High |
| A | 63g | 3.0° | High |
| R | 65g | 3.0° | High |
| S | 68g | 2.9° | High |
Graphite
Tensei AM2 Red (Ladies)
Lightweight
| Flex | Weight | Torque | Launch |
|---|---|---|---|
| L | 56g | 3.0° | High |
Titleist Universal 360
| Core | Weight |
|---|---|
| .580 | 52g |
| .600 | 50g |
Grind Options
The Ultimate in Shot Versatility
T GRIND
For Sharper Shotmaking
The T Grind is perfect for players looking for low bounce and a narrow sole that hugs the ground. With maximum heel, toe and trailing edge relief it allows for ultimate shot-making versatility from any condition.
M GRIND
Multi-Purpose Grind for Versatility
The M Grind, Voke’s favorite, is designed for players that like to rotate the club face open and closed to manufacture shots around the green. Ideal for players with a shallower, more sweeping swing type who play shots from a variety of clubface positions.
S GRIND
Narrow and Versatile
The S Grind features a full sole that has been narrowed by a trailing edge grind, giving it a faster feel through the turf. This grind is best for neutral to firm conditions and for players that like to control loft with their hands ahead or behind the ball.
D GRIND
The Player's High-Bounce Wedge
The D Grind blends versatility from a heel, toe, and trailing edge grind and forgiveness with its high measured bounce. The D Grind is ideal for players with a steeper angle of attack who play shots from a variety of clubface positions.
F GRIND
All-Purpose Grind for Full Wedge Shots
The F Grind is an all-purpose grind particularly suited for full shots and shots hit with a square face. Ideal for players who prefer a traditional wedge sole.
K GRIND
The Ultimate in Soft Conditions
The K Grind is the highest bounce wedge in the lineup and is the ultimate bunker club. A wide, full sole wedge with enhanced camber, the K Grind is forgiving from a variety of softer sand and turf conditions.
Compare
Find My Grind
Players preferring a full sole for full shots.
Choice of the World's Best
Most Played Wedge on Tour
Vokey Design wedges have been the most played on tour since 2004, validating the product performance and the service commitment and skill of Master Craftsman Bob Vokey and Tour Rep Aaron Dill.
